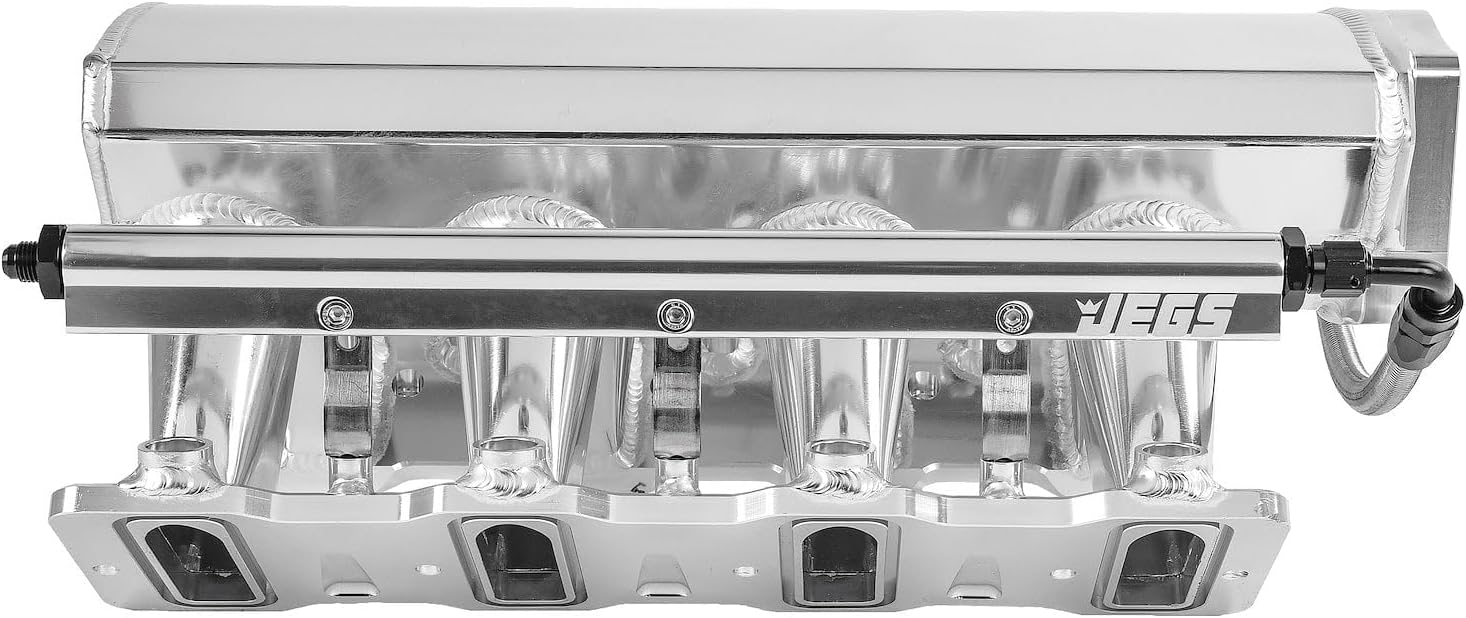

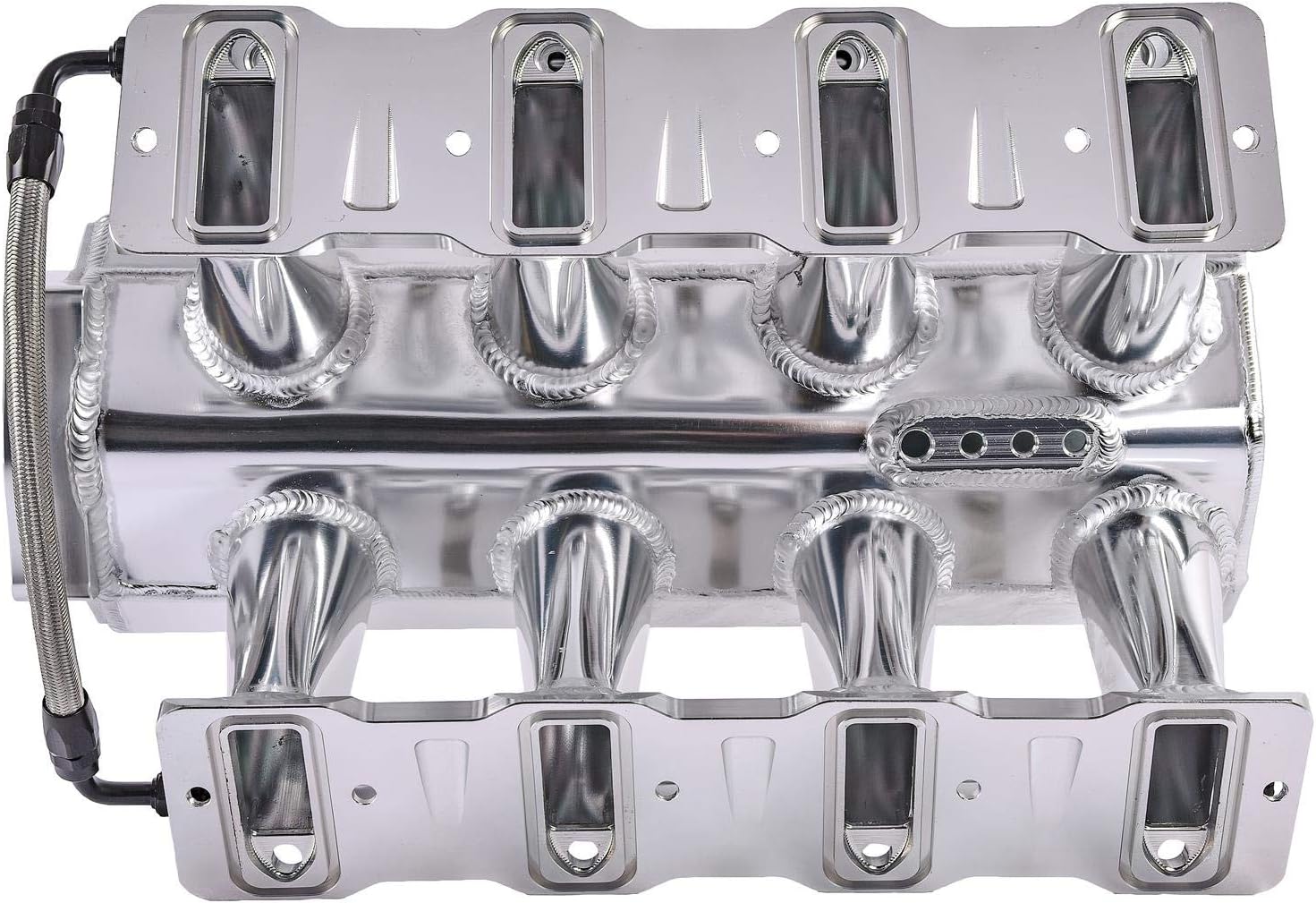

JEGS 513062 Fabricated Polished Aluminum Intake Manifold for GM LS1, LS2, LS6
Product details
| Management number | 214231219 | Release Date | 2026/04/12 | List Price | $188.00 | Model Number | 214231219 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Fabricated Intake ManifoldGM LS1, LS2, LS6Accepts 92 mm or 102 mm Throttle Body2200-6800 RPM RangePolished AluminumIncludes:LS3 Style MAP Sensor PortVacuum Port FittingsFuel Rail KitIntake SealsHardware Note:Works with LS1 and LS6 Style InjectorsThis intake is designed to work with stock LS heads. The use of some aftermarket cylinder heads may result in port misalignmentCaution During Installation: The throttle body gasket can get damaged during Installation. Replacement gasket is available. We recommend 695-G31963Intake Dimensions:Front Height: 7.250 in.Rear Height: 7.500 in.Front Intake Bolt to Intake Front: 5.250 in.Rear Intake Bolt to Intake Rear: -0.500 in.Intake Runner: 1.750 in. x 2.150 in. x 4 in. LongIntake Flange: 0.958 in. ThickThrottle Body Opening: 102 mmFuel Rails use -8 AN ORB FittingsIncludes:(1) LS3 Style MAP sensor port provision at rear of manifold. We recommend 555-14538 MAP sensor(4) Vacuum port fittings for bottom of manifold(1) 1/8 in.-28 thread x 1/4 in. hose end(1) 1/8 in.-28 thread x 5/16 in. hose end(1) 1/8 in.-28 thread x 7/16 in. hose end(1) 1/4 in.-19 thread x 1/2 in. hose end
- GM LS1, LS2,...
- Accepts 92 mm or 102 mm Throttle...
- 2200-6800 RPM...
- Polished...
- Includes:
| Brand | JEGS |
|---|---|
| Model | JEGS |
| Exterior | Per Item Description |
| Item Weight | 18.29 pounds |
| Manufacturer | JEGS |
| OEM Part Number | 513062 |
| Item model number | 555-513062 |
| Product Dimensions | 21.3 x 14.8 x 10 inches |
| Manufacturer Part Number | 513062 |
